New! 1.33Gbps - DDR1 / DDR2 / DDR3
|
4 powerful DC functions for today's OEM
|
Model: TCII-1200AD
|
|
• "Optional" 4, 8, 12 or 16 module testing, in parallel,
|
| for high thru-put on production |
• Form factor supports: 240P LODIMM, 200P SODIMM,
|
204P SODIMM, IC components & Custom form factors
|
|
|
|
|
 |
|
New! 1.33Gbps - DDR2 / DDR3
|
Supports 8 and 16 DUT's in parallel testing.
|
Model: TCIII-1200L
|
|
• "Optional" 8 or 16 test sockets available for faster
|
| thru-put in a production environment |
• Single test adapter supports both unbuffered and
|
| registered module testing |
|
|
|
|
 |
1.33Gbps - DRM, SDRM, DDR1/2/3, Nand/Nor Flash & MCP
|
64 ICs can be tested in parallel.
|
Model: TCIII-1200IC
|
|
• IC components and custom test socket load boards
|
• Supports Block/Page/Column modes
|
• Over 35 industry standard AC test patterns available
|
• "Optional" heat chamber and handler interface
|
|
|
|
|
 |
1.33Gbps - DRM, SDRM, DDR1/2/3, Nand/Nor Flash & MCP
|
64 DUT sites can be test in parallel.
|
Model: TCII-1200IC
|
|
| • Supports both large block and small block architecture |
• Supports AC/DC parametric tests
|
• "Optional" User Script Code for customized test patterns
|
• "Optional" heat chamber and handler interface
|
|
|
|
|
 |
|
New! IBM Super NOVA FBDIMM (SND/DwSND)
|
DDR3 Fully Buffer DIMM (DD1.0 & x81)
|
Model: TCIII-6400-SNDT
|
|
• 8 sites in parallel
|
• 4GB, 8GB, 16GB and 32GB memory capacity
|
• Open/short and AC pattern tests
|
• VPD read, write, verify and test
|
|
|
|
|
 |
|
New! 1066Mbps & 1333Mbps
|
LODIMM / SODIMM / UDIMM / RDIMM
|
Model: TCEX-1333
|
|
• DDR3 tests clock speeds up to 667Mhz
|
• DDR2 tests clock speeds up to 400Mhz
|
• Enhanced bus cycles at speed testing
|
• Open/Shorts plus 7 comprehensive AC patterns
|
|
|
|
|
 |
|
1.33Gbps - DDR1 / DDR2 / DDR3
|
Testing 8 or 16 modules in parallel.
|
Model: TCIII-1200D
|
|
• Configurable for testing 8 or 16 modules in parallel & at speed
|
• Supports AC/DC parametric
|
• "Optional" user selected motherboard for S.A.T function
|
• "Optional" user defined script code test pattern programming
|
|
|
|
|
 |
|
1.33Gbps - DDR2 / DDR3
|
Dual sockets to 4 or 8 sockets in parallel.
|
Model: TCII-1200D
|
|
| • "Optional" 2, 4 or 8 module testing, in parallel and at speed |
• Over 35 industry standard AC test patterns available
|
• Single adapter supports both unbuffered and registered
|
module testing
|
|
|
|
|
 |
|
HT-1000 DIMM Handler
|
High parallel test of up to 4 DUT's tester.
|
Model: HT1000
|
|
| • Advanced capabilities that support high throughput |
| parallel testing |
• Flexible DUT interface assembly
|
• High parallel test of up to 4 DUTs per tester, 1 tester
|
|
|
|
|
 |
|
HT-5064 IC Handler
|
Allows parallel testing of 64 DUT's per tester.
|
Model: HT-5064
|
|
| • High capacity state-of-the-art handling test system |
• High parallel test of up to 64 DUTs per tester
|
| • Suitable for mass production use |
• Advanced programming capabilities
|
|
|
|
|
 |
|
800Mhz - DDR1 / DDR2
|
Motherboard connection for Specific Application Test.
|
Model: TCIII-800ST
|
|
| • Multi-site memory module testing (MST) |
| • DDR2 - Up to (800Mhz) PC6400 Data Bandwidth |
• Form Factors supported - 240P LODIMM, 200P SODIMM,
|
| 276P IBM Server DIMM and customized test adapters |
|
|
|
|
 |
|
NAND Flash tester
|
Package Type : TSOP, USOP, WSOP, etc.
|
Model: TCIII-100NF
|
|
| • Address Mode Depth: Up to 128 Gbytes |
| (24 bits row, 12 bits column) |
• Data Width: 8 bits or 16 bits device
|
• Maximum Frequency: Up to 100Mhz
|
|
|
|
|
 |
|
800Mhz - DDR1 / DDR2
|
Allows for DDR2 testing at speeds up to 800Mhz.
|
Model: TCII-ACPF-800
|
|
| • DDR2 - PC3200, PC3500, PC4300, PC4500, PC5300 & PC5600 |
• DDR1 - PC1600, PC1700, PC2100, PC2200, PC2700, PC2800
|
• Over 35 complex AC/DC parametric test patterns
|
• Supports leakage and Icc tests
|
|
|
|
|
 |
|
NAND Flash tester
|
An optional hot temperature chamber is available.
|
Model: TCII-100NF
|
|
| • Address Mode Depth: Up to 128 Gbytes |
| (24 bits row, 12 bits column) |
• Data Width: 8 bits or 16 bits device
|
• 8 of NAND's for 8 bits and 4 of NAND's for 16 bits
|
|
|
|
|
 |
|
800Mhz - DDR1 / DDR2
|
Over-clocking guard-band support.
|
Model: TCI-ACPF-800
|
|
| • DDR2 speed test up to 800Mhz |
| • DDR1 speed test up to 440Mhz |
• Supports at speed test AC test pattern
|
• Supports leakage, Icc tests and Auto-ID function
|
|
|
|
|
 |
|
TurboCATS Accessories & Extras
|
|

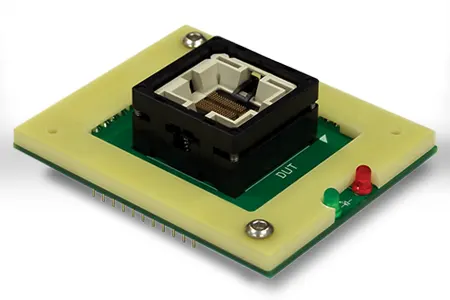

Offers a wide selection of accessories such as DDR3 SODIMM 204 pin test adapter , 240 pin Long DIMM test socket, heat chamber, BGA test socket, converter, power supply, test switch and more.
|
|
|
|
|
|
